Loads Terminations

Coaxial terminations 2.4mm Male 65 Ghz 0.5 and 1.0 Watt
2.4mm Coaxial
Male Terminations
DC-65 Ghz
Coaxial terminations 2.92mm Male 40 Ghz 0.5 and 1.0 Watt
2.92mm Coaxial
Male Terminations
DC-40 Ghz
Coaxial terminations SMA Male 27 Ghz 0.5 and 1.0 Watt
SMA Coaxial
Male Terminations
DC-27 Ghz
Coaxial terminations 2.4mm, 2.92mm Male 65 Ghz 0.5 and 1.0 Watt
2.4mm, 2.92mm
Female Terminations
DC-65 Ghz

RF Terminations or loads are used to absorb incident power at a port with very little reflection. SigaTek offers a wide selection of RF microwave 50 ohm loads terminations male and female type. A selection of SMA loads covering frequency range DC to 27 Ghz, 2.92 mm loads covering frequency range DC to 40 Ghz and 2.4 mm loads covering frequency range DC to 60 Ghz. The 2.4mm loads are good up to 65 Ghz with some minor degradation in return loss. Power rating is 2 watt,1 watt and 0.5 watt. Rugged construction excellent return loss.

Features

Applications

Wide range up to 60 Ghz PCS, GSM, LTE, 5G
Excellent return loss Test equipments
Rugged shielded housing Communication systems

Microwave 50 ohm RF Coaxial Loads Terminations Male, Female up to 60 Ghz

Passive Microwave Terminations 50 ohm SMA, 2.92 mm, 2.4 mm


IN STOCK FOR SAME DAY DELIVERY

To view Real-Time stock quantity and price click on the ORDER link below.

Part
Number
PDF-Data
Frequency
Range
MHz
Connector
Type
Power
Watt
Max
VSWR VSWR
Data
Plots
ADD
TO CART
*
Male Loads-Terminations 50 ohms
LMS-1 DC-40.0 2.92mm- Male 0.5 1.20:1 LMS-1 ORDER
LMS-2 DC-60.0 2.4mm- Male 0.5 1.40:1 LMS-2 ORDER
LMS-3 DC-20.0 SMA- Male 1.0 1.20:1 LMS-3 ORDER
LMS-6 DC-27.0 SMA- Male 1.0 1.40:1 LMS-6 ORDER
LMS-4 DC-18.0 SMA- Male 2.0 1.25:1 LMS-4 ORDER
LMS-9 DC-26.5 SMA- Male 2.0 1.35:1 LMS-9 ORDER
LMS-5 DC-12.4 SMA- Male 1.0 1.40:1 LMS-5 ORDER
Female Loads-Terminations 50 ohms
LFS-7 DC-40.0 2.92mm- Female 0.5 1.20:1 LFS-7 ORDER
LFS-8 DC-60.0 2.4mm- Female 0.5 1.40:1 LFS-8 ORDER
*
NOTE: SMA is compatible to 3.5mm and 2.92mm, 2.4mm is compatible to 1.85mm.
For Special applications or engineering questions call the sales office at 973-706-8475 or e-mail us at E-MAIL and we shall respond to you promptly.
QUICK DELIVERY FOR OUT OF STOCK PARTS. Request a QUOTE.


Product Image Qty In Stock- Item Name Price
LMS-1 Load Termination 50 ohm 2.92mm DC-40 Ghz 148

LMS-1 Load Termination 50 ohm 2.92mm DC-40 Ghz

2.92 mm male precision termination 50 ohm. Frequency range DC to 40 Ghz and VSWR is better than 1.20:1. The 2.92mm termination will mate with SMA and 3.5mm. Data Sheet:   View PDF file for...
$115.00

 Buy Now

LMS-2 Load Termination 50 ohm 2.4mm DC-60 Ghz 150

LMS-2 Load Termination 50 ohm 2.4mm DC-60 Ghz

LMS-2: is a 2.4mm RF load termination. It has a male 2.4mm interface and can also made with 1.85mm profile interconnects. Power rating is 1 watt and is rated for a maximum frequency of 50 GHz but...
$209.00

 Buy Now

LMS-3 Load Termination 50 ohm SMA DC-20 Ghz 85

LMS-3 Load Termination 50 ohm SMA DC-20 Ghz

SMA male precision termination 50 ohm. Power handling is 1.0 watt, frequency range DC to 20 Ghz and VSWR is better than 1.20:1. Data Sheet: View PDF file for Dimensions and Specifications. VSWR: ...
$24.95

 Buy Now

LMS-4 Termination 50 ohm 2 Watt SMA DC-18 Ghz 13

LMS-4 Termination 50 ohm 2 Watt SMA DC-18 Ghz

SMA male precision termination 50 ohm. Power handling is 2.0 watt, frequency range DC to 18 Ghz and VSWR is better than 1.25:1. Data Sheet: View PDF file for Dimensions and Specifications. VSWR: ...
$49.00

 Buy Now

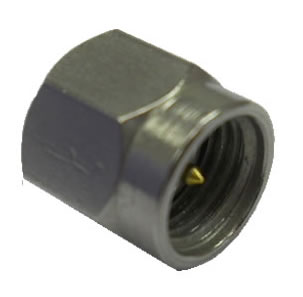

LMS-5 Load Termination 50 ohm SMA DC-12.4 Ghz 466

LMS-5 Load Termination 50 ohm SMA DC-12.4 Ghz

SMA male precision termination 50 ohm. Power handling is 1.0 watt, frequency range DC to 12.4 Ghz and VSWR is better than 1.40:1. Data Sheet: View PDF file for Dimensions and Specifications. VSWR:...
$14.75

 Buy Now

LMS-6 Load Termination 50 ohm SMA DC-27 Ghz 149

LMS-6 Load Termination 50 ohm SMA DC-27 Ghz

SMA male precision termination 50 ohm. Power handling is 1.0 watt, frequency range DC to 27 Ghz and VSWR is better than 1.20:1 Typ. 1.40:1 Max. Data Sheet: View PDF file for Dimensions and...
$29.00

 Buy Now

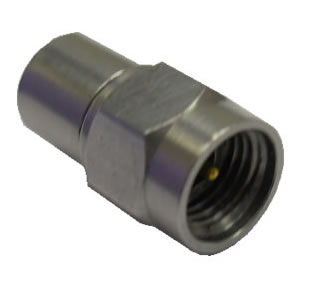

LMS-9 Termination 50 ohm 2 Watt SMA DC-26.5 Ghz 0

LMS-9 Termination 50 ohm 2 Watt SMA DC-26.5 Ghz

SMA male precision termination 50 ohm. Power handling is 2.0 watt, frequency range DC to 26.5 Ghz and VSWR is better than 1.35:1. Data Sheet: View PDF file for Dimensions and Specifications. VSWR:...
$59.00

... more info
 Sold Out

LFS-7 Termination 50 ohm 2.92mm Female DC-40 Ghz 20

LFS-7 Termination 50 ohm 2.92mm Female DC-40 Ghz

2.92 mm female precision termination 50 ohm. Frequency range DC to 40 Ghz and VSWR is better than 1.20:1. Data Sheet: View PDF file for Dimensions and Specifications. VSWR: View PDF file for VSWR...
$145.00

 Buy Now

LFS-8 Termination 50 ohm 2.4mm Female DC-60 Ghz 44

LFS-8 Termination 50 ohm 2.4mm Female DC-60 Ghz

2.4 mm female precision termination 50 ohm. Frequency range DC to 60 Ghz. Data Sheet: View PDF file for Dimensions and Specifications. VSWR: View PDF file for VSWR Response.
$219.00

 Buy Now
