N-N adapters

  • Specifications:
  • Impedance= 50 ohms
  • Frequency= DC - 18 Ghz
  • Durability = 500 cycles
  • Temperature Range= -55 C - +165 C
  •
  • Marerial / Finish
  • Housing: Stainless Steel SU303 Polished / Passivated
  • Center Condact: Beryllium Copper Gold plated (MIL-G-45204)
  • Insulators: PEI
  • N Interfaces PER MIL-STD-348A

    • N Female to N Female Adapter

    N Male to N Female Adapter

    N Male to N Male Adapter

    Scroll bottom of the page to see STOCK items, if non in Stock Request a Quote for a Quick Delivery.

    N - N Coaxial Adapters, In-Series and In-Between.

    Microwave RF adapters N Female to N Female
    N Female to N Female
    Part
    Number    		 VSWR Add To
    Cart
    PDF
    SA123 1.15:1 ORDER
    Microwave RF adapters N Male to N Female
    N Male to N Female
    Part
    Number    		 VSWR Add To
    Cart
    PDF
    SA124 1.15:1 ORDER
    Microwave RF adapters N Male to N Male
    N Male to N Male
    Part
    Number    		 VSWR Add To
    Cart
    PDF
    SA125 1.15:1 ORDER
    Precision 4 Hole Panel N Female to N Female Adapter
    N Female to N Female Adapter
    4 Hole Panel
    Part
    Number    		 VSWR Add To
    Cart
    PDF
    SA126 1.15:1 QUOTE
    Precision Bulkhead Adapter N Female to N Female
    Adapter N Female to N Female
    Bulkhead
    Part
    Number    		 VSWR Add To
    Cart
    PDF
    SA127 1.15:1 QUOTE
    Return Link to main menu adapter selection.
    * For any additional information call the sales office at 973-706-8475, fax us the inquiry at 973-832-4435 or e-mail us at E-MAIL with the part number and the quantity that you need and we shall respond to you promptly.


    Product Image Qty In Stock- Item Name Price
    SA123 Coaxial Adapter N Female to N Female 13

    SA123 Coaxial Adapter N Female to N Female

    High precision 50 ohm impedance stainless steel coaxial adapter M Female to N Female. Low loss, VSWR 1.15:1 max DC-18 Ghz. Data Sheet:  View PDF file for Dimensions and Specifications.
    		 $49.00

     Buy Now
    SA124 Coaxial Adapter N Male to N Female 20

    SA124 Coaxial Adapter N Male to N Female

    High precision 50 ohm impedance stainless steel coaxial adapter M Male to N Female. Low loss, VSWR 1.15:1 max DC-18 Ghz. Data Sheet:  View PDF file for Dimensions and Specifications.
    		 $49.00

     Buy Now

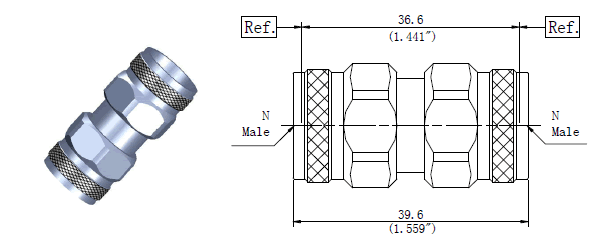

    SA125 Coaxial Adapter N Male to N Male 0

    SA125 Coaxial Adapter N Male to N Male

    High precision 50 ohm impedance stainless steel coaxial adapter M Male to N Male. Low loss, VSWR 1.15:1 max DC-18 Ghz. Data Sheet:  View PDF file for Dimensions and Specifications.
    		 $49.00

    ... more info
