N-TNCA adapters

  • Specifications:
  • Impedance= 50 ohms
  • Frequency= DC - 18 Ghz
  • Durability = 500 cycles
  • Temperature Range= -55 C - +165 C
  •
  • Marerial / Finish
  • Housing: Stainless Steel SU303 Polished / Passivated
  • Center Condact: Beryllium Copper Gold plated (MIL-G-45204)
  • Insulators: PEI and PTFE
  • N Interfaces PER MIL-STD-348A
  • TNC Interfaces PER MIL-STD-348A

  • N Female to TNCA Female Adapter

    N Male to TNCA Female Adapter

    N Female to TNCA Male Adapter

    N Male to TNCA Male Adapter


    Scroll bottom of the page to see STOCK items, if non in Stock Request a Quote for a Quick Delivery.


    N to TNCA Coaxial Adapters, In Between-Series.

    Microwave RF adapters N Female to TNCA Female
    N Female to TNCA Female
    Part
    Number
    VSWR Add To
    Cart
    PDF
    SA154 1.15:1 QUOTE

    Coaxial RF adapters N Male to TNCA Female
    N Male to TNCA Female
    Part
    Number
    VSWR Add To
    Cart
    PDF
    SA155 1.15:1 QUOTE

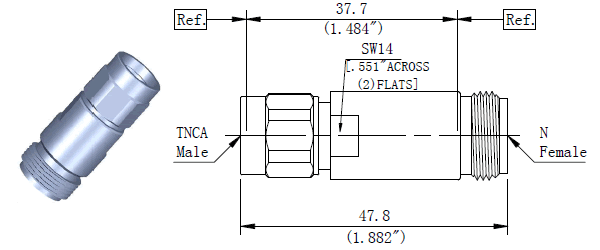

    Microwave RF adapters N Female to TNCA Male
    N Female to TNCA Male
    Part
    Number
    VSWR Add To
    Cart
    PDF
    SA156 1.15:1 QUOTE

    Microwave RF adapters N Male to TNCA Male
    N Male to TNCA Male
    Part
    Number
    VSWR Add To
    Cart
    PDF
    SA157 1.15:1 QUOTE
