Microwave Bias Tees 30 Khz-40 Ghz, up to 4 Amps - 100 Volts
Features | Applications |
---|---|
Wideband 30 Khz to 40 Ghz | Biasing amplifiers |
High isolation up to 60 dB | Biasing active antennas |
Excellent VSWR | Biasing networks thru coaxial lines |
Low insertion loss | DC return or blocking |
RoHS compliant | |
Microwave Bias Tees, RF Coaxial Broadband RF Networks 30 Khz to 40 Ghz
High Frequency Wideband Coaxial Bias Tees SMA, 2.92mm, 2.4mm
High current, High Voltage Microwave Bias Tees Networks
Broadband Bias Tees for Optical Networking Applications
Diplexers Bias Tees with RF modulation or DC supply port
Part Number PDF-Data |
Frequency Range Mhz |
Insertion Loss dB |
Isolation dB |
Current 1 Amps Max |
RF Power Watts Max |
Vdc Volts Max |
VSWR Max |
ADD TO CART * |
|
---|---|---|---|---|---|---|---|---|---|
Connectors: RFin=2.92mm female, RFout=2.92mm female, DC=SMA female Outline-D2 |
|||||||||
SB14D2 | 0.03-27000 | 2.2 | 35 | 0.75 | 1 | 25 | 1.80:1 | ORDER | |
SB15D2 | 0.03-40000 | 3.0 | 35 | 0.75 | 1 | 25 | 1.90:1 | ORDER | |
SB50D2 | 0.03-27000 | 1.2 | 35 | 0.75 | 1 | 50 | 1.80:1 | ORDER | |
SB51D2 | 0.03-40000 | 2.5 | 35 | 0.75 | 1 | 50 | 1.90:1 | ORDER | |
Connectors: RFin=2.92mm female, RFout=2.92mm female, DC=SMA female, High current. Outline-D4 |

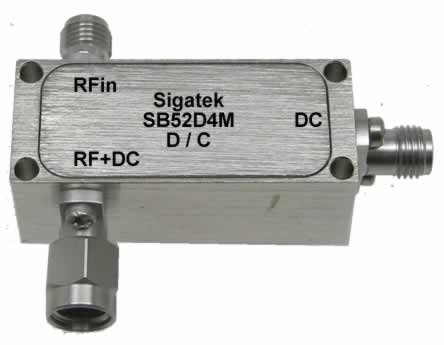

|||||||||
SB52D4 | 0.15-27000 | 1.5 | 35 | 1.5 | 10 | 50 | 1.80:1 | ORDER | |
SB53D4 | 0.15-40000 | 2.5 | 35 | 1.5 | 10 | 50 | 1.90:1 | ORDER | |
SB54D4 | 0.15-27000 | 1.5 | 35 | 2.0 | 10 | 50 | 1.80:1 | ORDER | |
SB55D4 | 0.15-40000 | 2.5 | 35 | 2.0 | 10 | 50 | 1.90:1 | ORDER | |
Connectors: RFin=2.92mm female, RFout=2.92mm female, DC=DC pin and Gound Outline-D2D |
|||||||||
SB14D2D | 0.03-27000 | 2.2 | 35 | 0.75 | 1 | 25 | 1.80:1 | ORDER | |
SB15D2D | 0.03-40000 | 3.0 | 35 | 0.75 | 1 | 25 | 1.90:1 | ORDER | |
Connectors: RFin=SMA female, RFout=SMA female, DC=SMA female High current Outline-D4 |

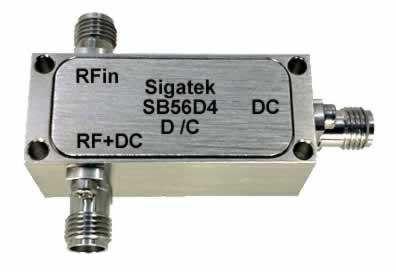

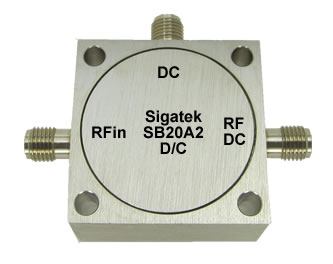

|||||||||
SB56D4 | 0.15-18000 | 1.4 | 35 | 2.0 | 10 | 50 | 1.80:1 | ORDER | |
Connectors: RFin=SMA female, RFout=SMA female, DC=SMA female | |||||||||
SB20A2 | 10-1000 | 0.6 | 25 | 1.0 | 5 | 100 | 1.25:1 | ORDER | |
SB22A2 | 10-3000 | 1.8 | 25 | 3.0 | 10 | 50 | 1.60:1 | ORDER | |
Connectors: RFin=SMA female, RFout=SMA female, DC=SMA female, High current. Outline-D3 |

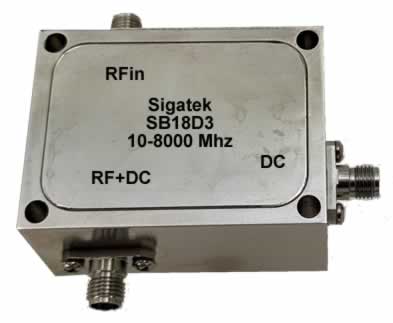

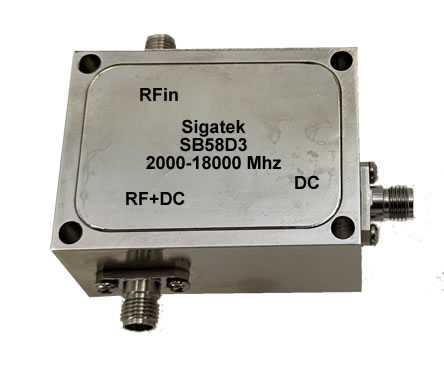

|||||||||
SB18D3 | 10-8000 | 1.8 | 35 | 4.0 | 10 | 100 | 1.50:1 | ORDER | |
SB57D3 | 5-12400 | 1.5 | 35 | 4.0 | 10 | 100 | 1.60:1 | ORDER | |
SB58D3 | 2000-18000 | 0.9 | 35 | 6.0 | 50 | 100 | 1.60:1 | ORDER | |

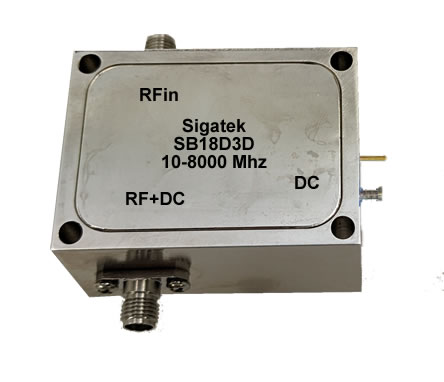

Connectors: RFin=SMA female, RFout=SMA female, DC=DC Pin and Ground, High current. Outline-D3D |
|||||||||
SB18D3D | 10-8000 | 1.8 | 35 | 4.0 | 10 | 100 | 1.50:1 | ORDER | |
Connectors: RFin=SMA female, RFout=SMA female, DC=SMA female Outline-D2 |
|||||||||
SB31D2 | 10-3000 | 1.5 | 30 | 3.0 | 10 | 100 | 1.50:1 | ORDER | |
SB10D2 | 100-6000 | 1.5 | 30 | 0.5 | 1 | 50 | 1.50:1 | ORDER | |
SB11D2 | 0.3-18000 | 1.5 | 30 | 0.5 | 1 | 50 | 1.60:1 | ORDER | |
SB12D2 | 0.1-12400 | 1.5 | 25 | 0.5 | 1 | 50 | 1.60:1 | ORDER | |
SB13D2 | 0.1-18000 | 2.0 | 25 | 0.5 | 1 | 50 | 1.60:1 | ORDER | |
SB30D2 | 1-12400 | 1.8 | 40 | 0.6 | 1 | 50 | 1.60:1 | ORDER | |
SB17D2 | 5-12400 | 1.8 | 35 | 1.5 | 3 | 25 | 1.70:1 | ORDER | |
Connectors: RFin=SMA female, RFout=SMA female, DC=DC pins Outline-D2D |
|||||||||
SB31D2D | 10-3000 | 1.5 | 30 | 3.0 | 10 | 100 | 1.50:1 | ORDER | |
SB10D2D | 100-6000 | 1.5 | 30 | 0.5 | 1 | 50 | 1.50:1 | ORDER | |
SB11D2D | 300-18000 | 1.5 | 30 | 0.5 | 1 | 50 | 1.60:1 | ORDER | |
SB12D2D | 0.1-12400 | 1.5 | 35 | 0.5 | 1 | 50 | 1.60:1 | ORDER | |
SB13D2D | 0.1-18000 | 2.0 | 35 | 0.5 | 1 | 50 | 1.60:1 | ORDER | |
SB17D2D | 5-12400 | 1.8 | 35 | 1.5 | 3 | 25 | 1.70:1 | ORDER | |
*
|
|||||||||
1-Indicates Devices with Higher than 1.0 Amp Current.
|
|||||||||
- For any male-connector application contact sales office.
|
|||||||||
- Custom and optimized designs are available.
|
|||||||||
For Special applications or engineering questions call the sales office at 973-706-8475 or e-mail us at E-MAIL and we shall respond to you promptly.
|

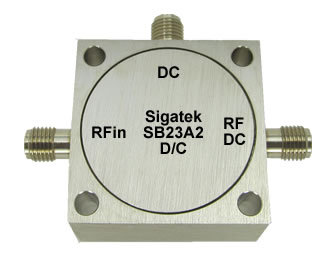

Outline A2 |

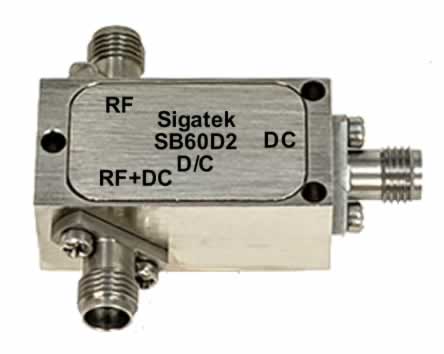

Outline D2 |

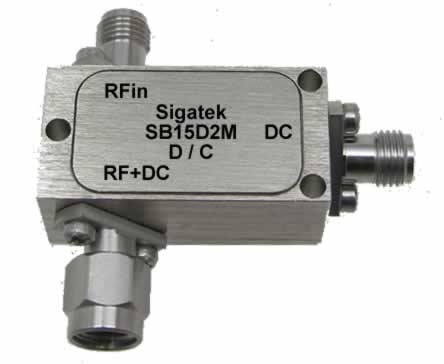

Outline D2M |
Outline D4 |
Outline D2D |

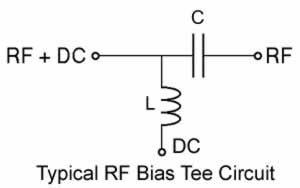

Bias Tee Circuit |
A bias tee is a network that consists of three ports. RFin input port is used for the RF signal, DC port is used for the DC voltage and RF+DC port is the output of the bias tee that combines RFin and DC. These networks are used for delivering DC voltage to some electronic components without disturbing other components. For example biasing an antenna amplifier which is positioned at the receiving end of the coaxial cable to pass DC power from an external source thru the coaxial cable to the amplifier. The bias tee networks can also be used as diplexers. The signals on RFin port and DC port occupy different frequency bands. The low frequency port or DC port is used to set the bias of a specific device where the high frequency port RFin passes the radio frequency signals but blocks the biasing levels. The combined port connects to the device, which sees both the bias signal and the RF signal. Other applications are biasing laser diodes, photodiodes and optical modulators with a bias current or bias voltage while wideband RF signals can pass through with a minimum signal degratation.
SigaTek offers a variety of broadband RF bias tees, networks that cover the frequency range of 30 Khz to 40 Ghz. Individual devices are designed for optical networking applications and can cover frequency bands from 30 Khz to 40 Ghz. These wideband RF bias tees, networks offer high isolation up to 60 dB Typ. with excellent VSWR, low insertion loss and high current handling up to 6 amps(custom designed). Voltage rating can be as high as 250 Vdc (custom designed). A selection of input and output connector options are available. Also, the DC port can be a RF connector or a DC pin.
