SMA connectors male female

Microwave Coaxial Connectors Jack (Female), Plug (Male) up to 65 Ghz

Stripline, Microstrip coaxial connectors Male, Female, Flange, Thread-in

RF Coaxial Connectors Square or Long Flange SMA, 2.92mm, 2.4mm, 1.85mm, N, TNC

SMA connectors Male, Female DC-27 Ghz
SMA
Female-550
Male-551
DC-27 Ghz
2.92mm connectors Male, Female DC-40 Ghz
2.92mm
Female-360
Male-361
DC-40 Ghz
2.4mm connectors Male, Female DC-50 Ghz
2.4mm
Female-370
Male-371
DC-50 Ghz
1.85mm connectors Male, Female DC-65 Ghz
1.85mm
Female-380
Male-381
DC-65 Ghz

N connectors Male, Female DC-18 Ghz
N
Female-340
Male-341
DC-18 Ghz
TNC connectors Male, Female DC-18 Ghz
TNC
Female-540
Male-541
DC-18 Ghz
Dimensions for Flange outlines
Outlines
Flange
Dimensions
--
Pin accessories d=12 mils, d=20 mils
Pin
Accessories
--
--

2.92mm connectors are the same as the K connectors

1.85mm connectors are the same as the V connectors

2.92mm connectors mate with SMA connectors

2.4mm connectors mate with 1.85mm connectors


  • Specifications:
  • Impedance= 50 ohms
  • Frequency= DC-27 Ghz
  • VSWR DC-18 Ghz= 1.10:1 max
  • 18-27 Ghz= 1.15:1 max
  • Contact Resistance: Center pin < 3.0 mohms
  • Contact Resistance: Housing <2 .0 mohms
  • Insulation Resistance > 5000 Mohms
  • Dielectric Withstanding Voltage= 1000 V
  • Durability = 500 cycles
  • Temperature Range= -55 C - +165 C
  • Interfaces: PER MIL-STD 348A
  •
  • Material / Finish
  • Housing: Stainless Steel SU303 Polished / Passivated
  • Center Condact: Beryllium Copper Gold plated (MIL-G-45204)
  • Insulators: PTFE & PEI
  • Connector application using different interfaces

    Request a Quote for a Quick Delivery!

    Outlines-Flange Dimensions

    Pins and Accessories


    SMA Coaxial Connectors Female



    Scroll bottom of the page to see STOCK items, if non in Stock Request a Quote for a Quick Delivery.


    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote

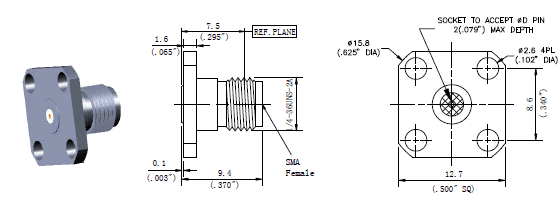

    550P09F1 0.23mm
    9 mils
    Quote
    550P12F1 0.30mm
    12 mils
    Quote
    550P20F1 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    550P09F2 0.23mm
    9 mils
    Quote

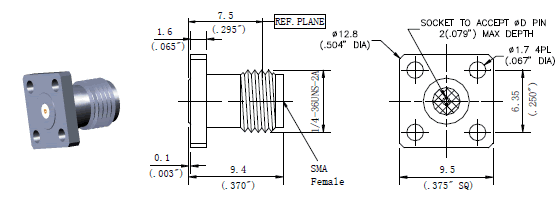

    550P12F2 0.30mm
    12 mils
    Quote
    550P20F2 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    550P09F3 0.23mm
    9 mils
    Quote
    550P12F3 0.30mm
    12 mils
    Quote
    550P20F3 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    550P09F4 0.23mm
    9 mils
    Quote
    550P12F4 0.30mm
    12 mils
    Quote
    550P20F4 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote

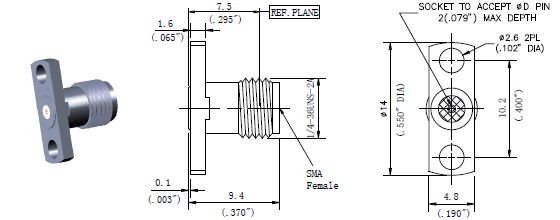

    550P09F5 0.23mm
    9 mils
    Quote
    550P12F5 0.30mm
    12 mils
    Quote
    550P20F5 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    550P09F7 0.23mm
    9 mils
    Quote
    550P12F7 0.30mm
    12 mils
    Quote
    550P20F7 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    550P09Y2 0.23mm
    9 mils
    Quote
    550P12Y2 0.30mm
    12 mils
    Quote
    550P20Y2 0.51mm
    20 mils
    Quote

    SMA Coaxial Connectors Male


    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    551P09F1 0.23mm
    9 mils
    Quote
    551P12F1 0.30mm
    12 mils
    Quote
    551P20F1 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    551P09F2 0.23mm
    9 mils
    Quote
    551P12F2 0.30mm
    12 mils
    Quote
    551P20F2 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    551P09F3 0.23mm
    9 mils
    Quote
    551P12F3 0.30mm
    12 mils
    Quote
    551P20F3 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    551P09F4 0.23mm
    9 mils
    Quote
    551P12F4 0.30mm
    12 mils
    Quote
    551P20F4 0.51mm
    20 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    551P09F5 0.23mm
    9 mils
    Quote
    551P12F5 0.30mm
    12 mils
    Quote
    551P20F5 0.51mm
    20 mils
    Quote

    SMA Coaxial Connectors Female with Extended Teflon Pin


    Microwave coaxial SMA connectors
    Part
    Number
    Teflon
    L1
    Request
    Quote
    550P103F1 3.20mm
    126 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Teflon
    L1
    Request
    Quote
    550P103F2 3.20mm
    126 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Teflon
    L1
    Request
    Quote
    550P103F4 3.20mm
    126 mils
    Quote
    550P203F4 4.20mm
    165 mils
    Quote

    Microwave coaxial SMA connectors
    Part
    Number
    Teflon
    L1
    Request
    Quote
    550P103F6 3.20mm
    126 mils
    Quote



    Product Image Qty In Stock- Item Name Price
    550P103F4 Connector SMA Female 2 Hole Flange Teflon Pin L=126 0

    550P103F4 Connector SMA Female 2 Hole Flange Teflon Pin L=126

    The 550P103F4 is SMA 2 Hole Flange 0.480” between holes Coaxial RF Female connector with extended teflon pin L1=126 mils. This connector has an extended teflon to interface with a Microstrip line...
    $9.00

    ... more info
     Sold Out

    550P12F2 Connector SMA Female 4 Hole Flange accepts 12 mils Pin 55

    550P12F2 Connector SMA Female 4 Hole Flange accepts 12 mils Pin

    The 550P12F2 is SMA 4 Hole Square Flange 0.375” Coaxial RF Female connector. This connector accepts a 12 mils Pin Diameter to interface with a Microstrip or Stripline line of 50 ohms and will...
    $9.00

     Buy Now

    550P12F4 Connector SMA Female 2 Hole Flange accepts 12 mils Pin 105

    550P12F4 Connector SMA Female 2 Hole Flange accepts 12 mils Pin

    The 550P12F4 is SMA 2 Hole Flange 0.480” between holes Coaxial RF Female connector. This connector accepts a 12 mils Pin Diameter to interface with a Microstrip or Stripline line of 50 ohms and...
    $9.00

     Buy Now

    550P203F4 Connector SMA Female 2 Hole Flange Teflon Pin L=165 77

    550P203F4 Connector SMA Female 2 Hole Flange Teflon Pin L=165

    The 550P203F4 is SMA 2 Hole Flange 0.480” between holes Coaxial RF Female connector with extended teflon pin L1=165 mils. This connector has an extended teflon to interface with a Microstrip line...
    $9.00

     Buy Now

    550P20F2 Connector SMA Female 4 Hole Flange accepts 20 mils Pin 45

    550P20F2 Connector SMA Female 4 Hole Flange accepts 20 mils Pin

    The 550P20F2 is SMA 4 Hole Square Flange 0.375” Coaxial RF Female connector. This connector accepts a 20 mils Pin Diameter to interface with a Microstrip or Stripline line of 50 ohms and will...
    $9.00

     Buy Now
