TNC connectors male female

Microwave Coaxial Connectors Jack (Female), Plug (Male) up to 65 Ghz

Stripline, Microstrip coaxial connectors Male, Female, Flange, Thread-in

RF Coaxial Connectors Square or Long Flange SMA, 2.92mm, 2.4mm, 1.85mm, N, TNC

SMA connectors Male, Female DC-27 Ghz
SMA
Female-550
Male-551
DC-27 Ghz
2.92mm connectors Male, Female DC-40 Ghz
2.92mm
Female-360
Male-361
DC-40 Ghz
2.4mm connectors Male, Female DC-50 Ghz
2.4mm
Female-370
Male-371
DC-50 Ghz
1.85mm connectors Male, Female DC-65 Ghz
1.85mm
Female-380
Male-381
DC-65 Ghz

N connectors Male, Female DC-18 Ghz
N
Female-340
Male-341
DC-18 Ghz
TNC connectors Male, Female DC-18 Ghz
TNC
Female-540
Male-541
DC-18 Ghz
Dimensions for Flange outlines
Outlines
Flange
Dimensions
--
Pin accessories d=12 mils, d=20 mils
Pin
Accessories
--
--

  • Specifications:
  • Impedance= 50 ohms
  • Frequency= DC-18 Ghz
  • VSWR DC-18 Ghz= 1.15:1 max
  • Contact Resistance: Center pin less than 1.5 mohms
  • Contact Resistance: Housing less than 0.2 mohms
  • Insulation Resistance greater than 5000 Mohms
  • Dielectric Withstanding Voltage greater than 1500 V
  • Durability: 500 cycles
  • Temperature Range= -55 C - +165 C
  • Interfaces: PER MIL-STD 348A
  • Material / Finish
  • Housing: Stainless Steel SU303 Polished / Passivated
  • Center Condact: Beryllium Copper Gold plated (MIL-G-45204)
  • Insulators: PTFE & PEI

  • Connector application using different interfaces

    Request a Quote for a Quick Delivery!

    Outlines-Flange Dimensions

    Pins and Accessories

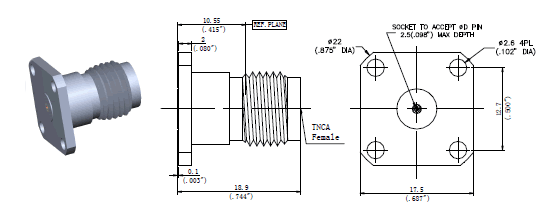

    TNC Coaxial Connectors Female


    Microwave coaxial TNC connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    540P20F9 0.51mm
    20 mils
    Quote
    540P36F9 0.91mm
    36 mils
    Quote

    Microwave coaxial TNC connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    540P20F1 0.51mm
    20 mils
    Quote
    540P36F1 0.91mm
    36 mils
    Quote

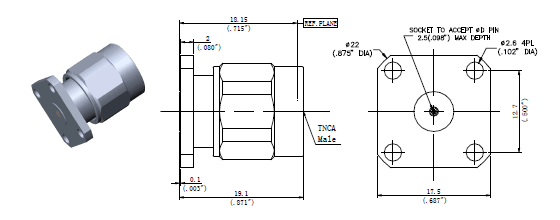

    TNC Coaxial Connectors Male


    Microwave coaxial TNC connectors
    Part
    Number
    Socket
    Diameter
    Request
    Quote
    541P20F9 0.51mm
    20 mils
    Quote
    541P36F9 0.91mm
    36 mils
    Quote
