Phase Shifters

Analog Voltage Controlled Phase shifters 180 and 360 degrees
Coaxial-SMA and Flatpack-Surface Mount.

Analog voltage controlled phase shifters 360 degrees
Analog Phase
Shifters
360 degrees
Outline A7
Analog voltage controlled phase shifters 180 degrees
Analog Phase
Shifters
180 degrees
Outline A2
Flatpack Surface mount Analog voltage controlled phase shifters 180 degrees
Analog Phase
Shifters
180 degrees
Flatpack F4
Features Applications
Wide range up to 4.0 Ghz PhaseLine match
Low insertion loss Cellular
Coaxial and Surface Mount Radar systems
RoHS compliant RF equipment

Electronically Controlled RF phase shifters coaxial SMA connectors.

Microwave Analog voltage controlled coaxial phase shifters.

Flatpack Surface Mount RF phase shifters 180 degree.

Voltage controlled 360 degrees up to 4000 Mhz.

Scroll bottom of the page to see STOCK items, if non in Stock Request a Quote for a Quick Delivery. E-MAIL

Part
Number
PDF-Data		 Input
Frequency
MHz		 Insertion
Loss
dB Max		 Phase
Shift
deg. Min		 Control
Voltage
Vdc Typ.		 VSWR
Max		 Order
Request
For QUOTE
Octave Bands Phase Shift 360 degree Outline-A7
Outline-A7		 -
SF43A7 0.8 - 1.1 3.5 360 0-10 1.80:1 Quote
SF33A7 1.0 - 1.2 3.5 360 0-10 1.80:1 Quote
SF34A7 2.0 - 2.4 3.5 360 0-10 1.80:1 Quote
SF35A7 4.0 - 6.0 3.5 360 0-10 1.80:1 Quote
SF36A7 5.0 - 8.0 4.0 360 0-10 1.80:1 Quote
SF37A7 10 - 20 3.7 360 0-10 1.90:1 Quote
SF26A7 20 - 40 3.5 360 0-20 1.80:1 Quote
SF27A7 40 - 80 3.5 360 0-20 1.80:1 Quote
SF28A7 60 - 120 3.8 360 0-20 1.80:1 Quote
SF56A7 70 - 140 3.8 360 0-20 1.80:1 Quote
SF29A7 150 - 300 4.0 360 0-20 1.90:1 Quote
SF42A7 450 - 550 4.0 360 0-20 1.90:1 Quote
SF30A7 800-1000 3.5 360 0-12 1.90:1 Quote
SF40A7 1400-1600 4.5 360 0-20 1.90:1 Quote
SF31A7 1800-2000 4.4 360 0-20 1.90:1 Quote
SF32A7 2000-2500 4.8 360 0-20 1.90:1 Quote
SF41A7 2700-3200 5.4 360 0-20 2.00:1 Quote
Octave Bands Phase Shift 180 degree Outline-A2
Outline-A2		 -
SF50A2 20 - 40 2.2 180 0-20 1.70:1 Quote
SF51A2 40 - 80 2.2 180 0-20 1.70:1 Quote
SF52A2 60 - 120 2.2 180 0-20 1.70:1 Quote
SF55A2 100 - 200 2.5 180 0-20 1.80:1 Quote
SF53A2 150 - 300 2.3 180 0-20 1.80:1 Quote
SF54A2 200 - 400 2.5 180 0-20 1.80:1 Quote
Specific Bands Phase Shift 180 degree Outline-A2
Outline-A2		 -
SF10A2 10 - 11 1.8 180 0-20 1.70:1 Quote
SF11A2 20 - 23 1.8 180 0-20 1.70:1 Quote
SF12A2 28 - 32 1.8 180 0-20 1.70:1 Quote
SF13A2 57 - 63 1.5 180 0-20 1.70:1 Quote
SF14A2 95 - 105 1.5 180 0-20 1.70:1 Quote
SF15A2 100 - 120 1.5 180 0-20 1.70:1 Quote
SF16A2 133 - 147 1.5 180 0-20 1.70:1 Quote
SF17A2 190 - 210 1.6 180 0-20 1.70:1 Quote
SF18A2 225 - 255 1.8 180 0-20 1.70:1 Quote
SF19A2 280 - 320 1.8 180 0-20 1.70:1 Quote
SF38A2 380 - 420 1.8 180 0-20 1.70:1 Quote
SF20A2 800 - 900 2.4 180 0-20 1.80:1 Quote
SF21A2 1400-1600 2.4 180 0-20 1.90:1 Quote
SF22A2 1700-1900 2.4 180 0-20 1.90:1 Quote
SF23A2 1800-2000 2.6 180 0-20 1.90:1 Quote
SF39A2 1700-2200 2.8 180 0-20 1.90:1 Quote
SF24A2 2000-2200 2.8 180 0-20 1.90:1 Quote
SF25A2 2200-2500 2.8 180 0-20 1.90:1 Quote
SF40A2 3300-3700 3.0 180 0-20 1.90:1 Quote
SF41A2 2500-3500 3.0 180 0-20 1.90:1 Quote
Flatpack Surface Mount Phase Shifters 180 degree Outline-F4
Outline-F4		 -
SF50F4 20 - 40 2.2 180 0-20 1.70:1 Quote
SF51F4 40 - 80 2.2 180 0-20 1.70:1 Quote
SF52F4 60 - 120 2.2 180 0-20 1.70:1 Quote
SF55F4 100 - 200 2.5 180 0-20 1.80:1 Quote
SF53F4 150 - 300 2.5 180 0-20 1.80:1 Quote
SF54F4 200 - 400 2.5 180 0-20 1.80:1 Quote
SF10F4 10 - 11 1.8 180 0-20 1.70:1 Quote
SF11F4 20 - 23 1.8 180 0-20 1.70:1 Quote
SF12F4 28 - 32 1.8 180 0-20 1.70:1 Quote
SF13F4 57 - 63 1.8 180 0-20 1.70:1 Quote
SF14F4 95 - 105 1.8 180 0-20 1.70:1 Quote
SF15F4 100 - 120 1.8 180 0-20 1.70:1 Quote
SF16F4 133 - 147 1.8 180 0-20 1.70:1 Quote
SF17F4 190 - 210 1.8 180 0-20 1.70:1 Quote
SF18F4 225 - 255 1.8 180 0-20 1.70:1 Quote
SF19F4 280 - 320 1.8 180 0-20 1.70:1 Quote
*
- Input Frequency nominal power < 5.0 dBm
- Modulation Frequency is DC-100 Khz Typ.
- Custom and optimized designs are available.
For Special applications or engineering questions call the sales office at 973-706-8475 or e-mail us at E-MAIL and we shall respond to you promptly.
Analog or electronically phase shifters are devices that change phase as the analog control voltage changes. The control voltage changes the resonance frequency of an L (inductor) and C (capacitor,varactor diode) network. As a result the phase of the device changes from 0 degrees to 180 degree, keeping amplitude with very little variation.  By cascading two identical devices we can achieve a phase change of 360 degree. An analog phase shifter consists of a 90 degree hybrid, where the input port and isolated port are used as the RFin and RFout of the phase shifter. On the 0 and 90 degree outputs of the hybrid are connected the two identical resonant networks L inductor and C varactor diode. The control voltage changes the capacitance value of the varactor diode which results to the phase change of the device.
Displaying 1 to 24 (of 24 Products)
Qty. Product Image Product Name Price
In Stock: 0 (image for) SF56A7 Analog Phase Shifter 360 degree 70-140 Mhz

SF56A7 Analog Phase Shifter 360 degree 70-140 Mhz

Flatpack Surface mount voltage controlled phase shifters 70-140 Mhz. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control voltage 0...
$675.00
... more info
In Stock: 0 (image for) SF52F4 Flatpack analog phase shifter 180 degree 60-120 Mhz

SF52F4 Flatpack analog phase shifter 180 degree 60-120 Mhz

Flatpack Surface mount voltage controlled phase shifters 60-120 Mhz. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control voltage 0...
$365.00
... more info
In Stock: 0 (image for) SF28A7 Analog Phase Shifter 360 degree 60-120 Mhz

SF28A7 Analog Phase Shifter 360 degree 60-120 Mhz

Octave Band 60-120 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 360 degree at center frequency with respect to control voltage...
$675.00
... more info
In Stock: 0 (image for) SF52A2 Analog Phase Shifter 180 degree 60-120 Mhz

SF52A2 Analog Phase Shifter 180 degree 60-120 Mhz

Octave Band 60-120 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control voltage...
$345.00
... more info

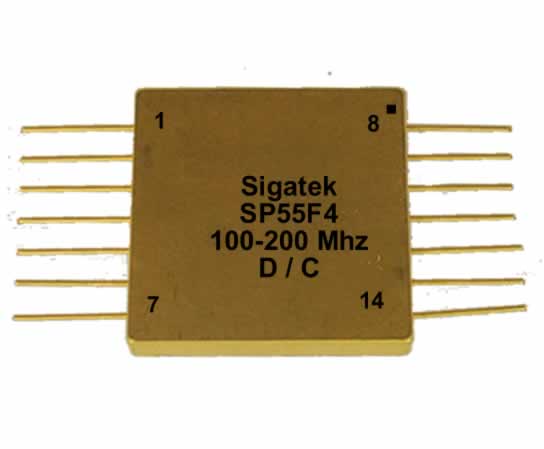

In Stock: 0 (image for) SF55F4 Flatpack analog phase shifter 180 degree 100-200 Mhz

SF55F4 Flatpack analog phase shifter 180 degree 100-200 Mhz

Flatpack Surface mount voltage controlled phase shifters 100-200 Mhz. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control voltage...
$365.00
... more info
In Stock: 0 (image for) SF55A2 Analog Phase Shifter 180 degree 100-200 Mhz

SF55A2 Analog Phase Shifter 180 degree 100-200 Mhz

Octave Band 100-200 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control...
$395.00
... more info

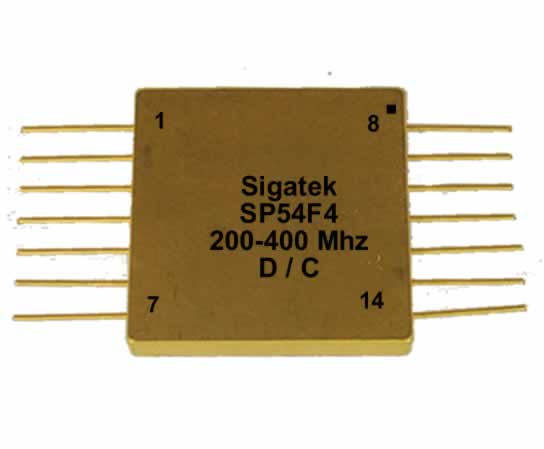

In Stock: 0 (image for) SF54F4 Flatpack analog phase shifter 180 degree 200-400 Mhz

SF54F4 Flatpack analog phase shifter 180 degree 200-400 Mhz

Flatpack Surface mount voltage controlled phase shifters 200-400 Mhz. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control voltage...
$385.00
... more info
In Stock: 0 (image for) SF29A7 Analog Phase Shifter 360 degree 150-300 Mhz

SF29A7 Analog Phase Shifter 360 degree 150-300 Mhz

Octave Band 150-300 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 360 degree at center frequency with respect to control...
$675.00
... more info
In Stock: 0 (image for) SF53F4 Flatpack analog phase shifter 180 degree 150-300 Mhz

SF53F4 Flatpack analog phase shifter 180 degree 150-300 Mhz

Flatpack Surface mount voltage controlled phase shifters 150-300 Mhz. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control voltage...
$365.00
... more info

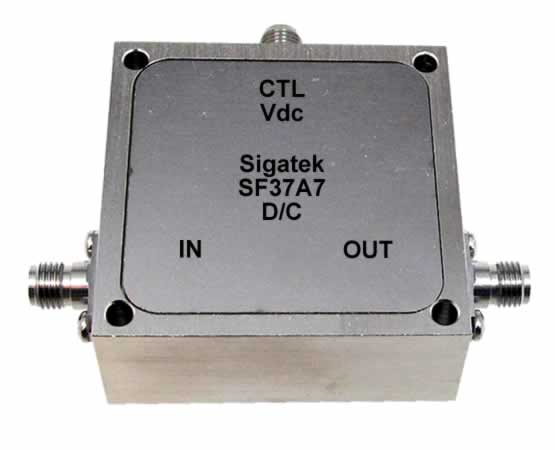

In Stock: 0 (image for) SF37A7 Analog Phase Shifter 360 degree 10-20 Mhz

SF37A7 Analog Phase Shifter 360 degree 10-20 Mhz

Octave Band 10-20 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 360 degree at center frequency with respect to control voltage...
$675.00
... more info
In Stock: 0 (image for) SF51A2 Analog Phase Shifter 180 degree 40-80 Mhz

SF51A2 Analog Phase Shifter 180 degree 40-80 Mhz

Octave Band 40-80 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control voltage...
$345.00
... more info
In Stock: 0 (image for) SF14A2 Analog Phase Shifter 180 degree 100 Mhz

SF14A2 Analog Phase Shifter 180 degree 100 Mhz

Special Band centered at 100 Mhz with 10% Bandwidth. Analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency...
$325.00
... more info
In Stock: 0 (image for) SF38A2 Analog Phase Shifter 180 degree 400 Mhz

SF38A2 Analog Phase Shifter 180 degree 400 Mhz

Special Band centered at 400 Mhz with 10% bandwidth. Analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency...
$325.00
... more info
In Stock: 0 (image for) SF10A2 Analog Phase Shifter 180 degree 10-11 Mhz

SF10A2 Analog Phase Shifter 180 degree 10-11 Mhz

Special Band centered at 10.5 Mhz with 10% Bandwidth. Analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency...
$345.00
... more info
In Stock: 0 (image for) SF17A2 Analog Phase Shifter 180 degree 200 Mhz

SF17A2 Analog Phase Shifter 180 degree 200 Mhz

Special Band centered at 200 Mhz with 10% Bandwidth. Analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency...
$345.00
... more info
In Stock: 0 (image for) SF19A2 Analog Phase Shifter 180 degree 300 Mhz

SF19A2 Analog Phase Shifter 180 degree 300 Mhz

Special Band centered at 300 Mhz with 10% bandwidth. Analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency...
$345.00
... more info

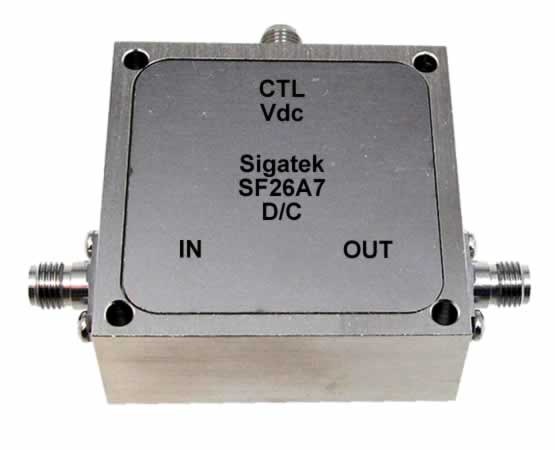

In Stock: 0 (image for) SF26A7 Analog Phase Shifter 360 degree 20-40 Mhz

SF26A7 Analog Phase Shifter 360 degree 20-40 Mhz

Octave Band 20-40 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 360 degree at center frequency with respect to control voltage...
$675.00
... more info
In Stock: 0 (image for) SF27A7 Analog Phase Shifter 360 degree 40-80 Mhz

SF27A7 Analog Phase Shifter 360 degree 40-80 Mhz

Octave Band 40-80 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 360 degree at center frequency with respect to control voltage...
$675.00
... more info
In Stock: 1 (image for) SF36A7 Analog Phase Shifter 360 degree 5-8 Mhz

SF36A7 Analog Phase Shifter 360 degree 5-8 Mhz

Octave Band 5-8 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 360 degree at center frequency with respect to control voltage 0...
$715.00
... more info
In Stock: 0 (image for) SF40A7 Analog Phase Shifter 360 degree 1.4-1.6 Ghz

SF40A7 Analog Phase Shifter 360 degree 1.4-1.6 Ghz

Octave Band 1.4-1.6 Ghz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 360 degree at center frequency with respect to control...
$675.00
... more info
In Stock: 0 (image for) SF41A7 Analog Phase Shifter 360 degree 2.7-3.2 Ghz

SF41A7 Analog Phase Shifter 360 degree 2.7-3.2 Ghz

Octave Band 2.7-3.2 Ghz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 360 degree at center frequency with respect to control...
$675.00
... more info
In Stock: 0 (image for) SF50A2 Analog Phase Shifter 180 degree 20-40 Mhz

SF50A2 Analog Phase Shifter 180 degree 20-40 Mhz

Octave Band 20-40 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control voltage...
$345.00
... more info
In Stock: 0 (image for) SF53A2 Analog Phase Shifter 180 degree 150-300 Mhz

SF53A2 Analog Phase Shifter 180 degree 150-300 Mhz

Octave Band 150-300 Mhz analog electronically controlled phase shifter. Phase shift is monotonic and continuously variable 0 to more than 180 degree at center frequency with respect to control...
$395.00
... more info

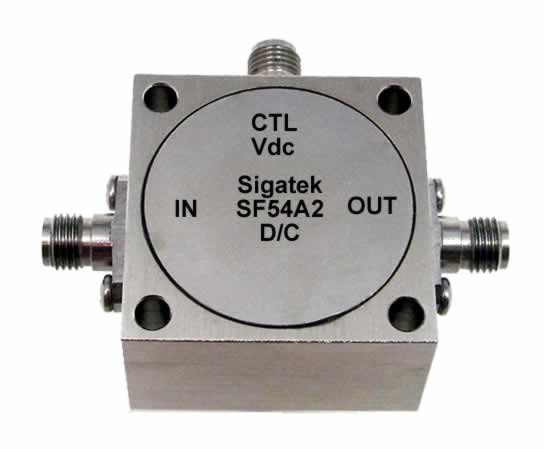

In Stock: 0 (image for) SF54A2 Analog Phase Shifter 180 degree 200-400 Mhz
